FFTlasertec

FFTlasertec RPD 2D Universal laser technology add-ons for your production.

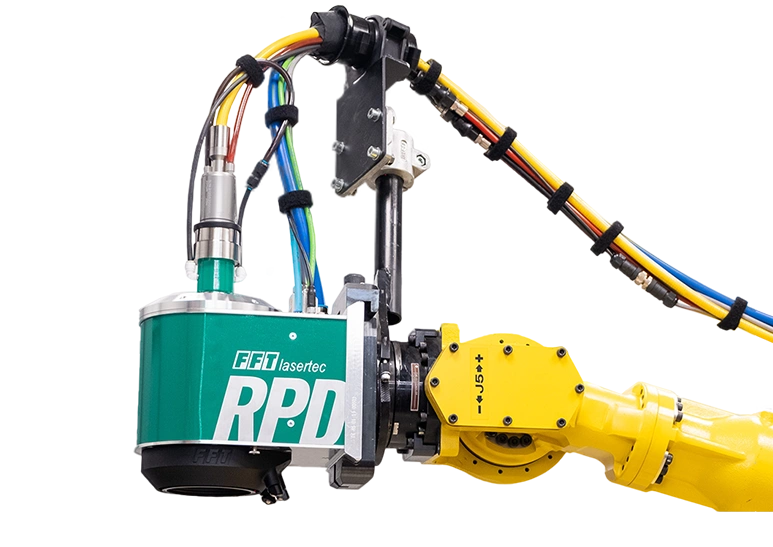

FFTlasertec RPD 2D

FFTlasertec RPD 2D
Request RPD 2D

Request - lasertec

Contact details

* Mandatory field

Please wait
Receive information material
Concept
  • Innovative welding optics
  • Compatible laser beam sources
  • Analog power control
  • Integrated control unit
  • Flexible software
Technical specifications
  • Circular scan field with 160 mm diameter
  • Laser beam sources: QBH and QD connections
  • Laser power via 0-10 V analog voltage
  • Simple mounting thanks to dovetail coupling
  • Crossjet
Concept
  • Innovative welding optics
  • Compatible laser beam sources
  • Analog power control
  • Integrated control unit
  • Flexible software
Technical specifications
  • Circular scan field with 160 mm diameter
  • Laser beam sources: QBH and QD connections
  • Laser power via 0-10 V analog voltage
  • Simple mounting thanks to dovetail coupling
  • Crossjet

Efficient and flexible laser processing Advantages of the FFTlasertec RPD 2D hardware

Flexible

  • Supports various laser sources with QBH and QD connection, enabling flexible integration into existing systems.
  • Enables easy replacement or retrofitting without complex infrastructure adjustments.

Stand-alone solution

  • Works independently without additional external control units.
  • No complex cabling or additional hardware required.

Short process times

  • Minimization of processing time for higher productivity.
  • Fast and efficient execution of welding processes.

Compact design

  • Integrated media system
  • Integrated crossjet
  • Integrated laser power control
  • Low weight enables use on small, energy-efficient robots

Advantages of the software Product highlights of the software

Creation of welding contours

Import of complex welding geometries

Status messages and system log

Intuitive parameterization of the process parameters

Backup options

Windows-based operating software

FFTlasertec RPD 2D Technical specifications

FFTlasertec RPD 2D

FFTlasertec RPD 2D

Length X width X height

244 mm x 170 mm x 305 mm

Working distance

480 mm

Laser power

kW

max. 3 kW @ 1030-1080 nm

Scan field

Ø 160 mm

Supply

Volt

Operating current  24 V ± 10%

BAR

Compressed air consumption  min. 1650 l/min @ 5,5 bar

A

Rated current: 16 A

Communication

  • Ethernet network standard: 10/100 Mbps
  • Bus protocol: PROFINET
  • Data protocol: TCP/IP
  • Laser power control via analog signal: 0-10 V

Spot size

bei 200 μm Faserdurchmesser ca. 0,84 mm

Weight

10 kg

Scanning speed

mm/s

max. 250 mm/s

FFTlasertec RPD 2D Mockup

FFTlasertec RPD 2D Complete technical specifications.

Information on our RPD 2D and accessories directly from us and with the expertise of the system manufacturer.

Download

Info material lasertec

Contact details

* Mandatory field

Please wait

Laser technology that inspires. We look forward to getting in touch with you:

Send us your concept idea, your automation requirements or a description of your laser process that we can support you with. We look forward to presenting our standardized portfolio to you, but also to developing new solutions together with you.

Your FFTlasertec contact:

Request - lasertec

Contact details

* Mandatory field

Please wait
