FFTprovi Part Drawer Inward and outward transfer and testing of components

FFTprovi Part Drawer

Concept

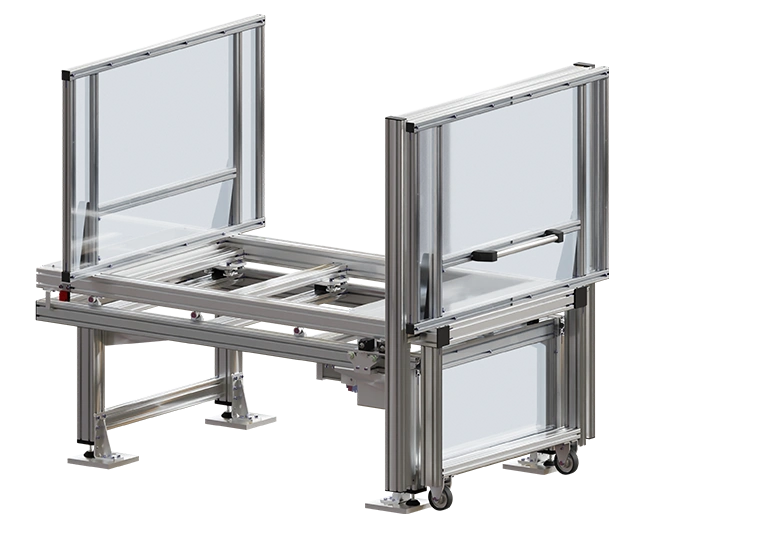

  • The FFTproviPart Drawer is a simple solution for feeding or removing components from an ongoing production process.
  • It is used for feeding in and out and for checking components.
  • In order to decouple the ongoing production process, the Part Drawer is used alternately as a pair. Production units can be fed manually into the first drawer and then alternately removed by the robot in the second drawer.
Technical specifications
  • Decoupling the loading process ensures a continuous production process.
  • NB variable > 400 - 1,000 mm in 50 mm increments
  • NL variable > 1,000 - 3,300 mm in 100 mm increments
Concept
  • The FFTproviPart Drawer is a simple solution for feeding or removing components from an ongoing production process.
  • It is used for feeding in and out and for checking components.
  • In order to decouple the ongoing production process, the Part Drawer is used alternately as a pair. Production units can be fed manually into the first drawer and then alternately removed by the robot in the second drawer.
Technical specifications
  • Decoupling the loading process ensures a continuous production process.
  • NB variable > 400 - 1,000 mm in 50 mm increments
  • NL variable > 1,000 - 3,300 mm in 100 mm increments

Advantages of the FFTprovi Part Drawer Seamless integration into your production process.

Sustainable

  • Sustainable and retoolable

Time saving

  • short delivery times due to standardized sizes

User-friendly

  • Simple and reliable operation
  • Quick integration due to low installation effort
  • Modular design in aluminum (special sizes possible)

Robust and easy to maintain

  • Use of proven components for high reliability and easy spare parts procurement.
  • Low maintenance requirements to minimize downtimes.

Functionality of the FFTprovi Part Drawer Use

Manual feeding, removal or testing of components

In a paired arrangement, decoupling between the operator and the system can be realized

Low noise emission, as stop dampers are installed in both directions.

Technical specifications

FFTprovi Part Drawer

Nominal length & nominal width

Nominal length (NL): >1,000 - 3,000mm

Nominal width (NB): 500 / 700 / 1,000mm

Protective field width & protective field height

Protective field width (SB): NB + 200 mm

Protective field height (SH): > 250 mm

Installation height

Installation height (FH): >450mm

Position accuracy

± 0,5 mm

Possible extensions

  • Automated variant
  • Protective fence attachment
  • Energy chain
  • Checking the components by means of component scanning
  • Movable robot window
  • Saloon doors

FFTprovi Part Drawer Complete technical specifications.

Further information on our product and accessories directly from us and with the expertise of the system manufacturer.

Part logistics and conveyor technology that inspires. We look forward to getting in touch with you:

Send us your concept idea, your automation request or a description of your conveying process for which we can support you with intelligent part logistics. We look forward to presenting our standardized portfolio to you, but also to developing new solutions together with you.
