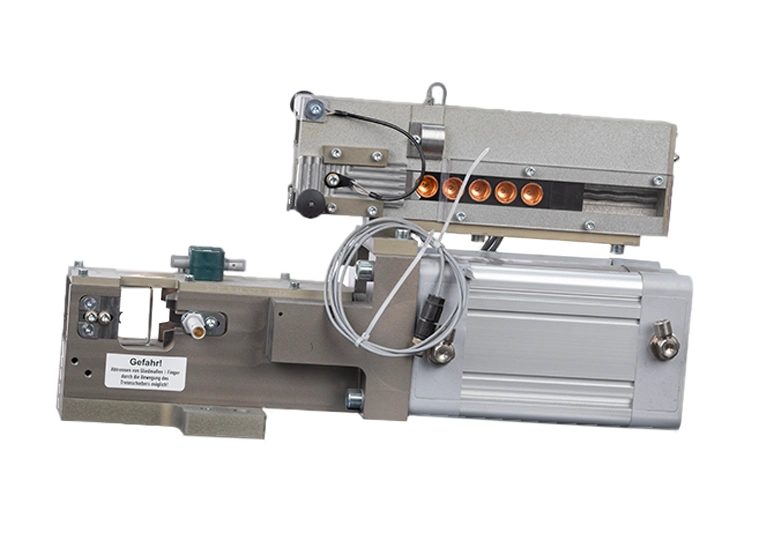

FFTweldtec Mobile TipChanger

FFTweldtec Mobile Tipchanger
Request Mobile TipChanger

Request - weldtec

Contact details

* Mandatory field

Please wait
Receive information material
Concept
  • FFTweldtecMobile TipChanger enables time-optimized and automatic changing of the electrode caps on stationary welding guns
  • combines compact design with low weight for mounting on the robot gripper
  • The electrode caps are changed one after the other by aligning the mobile TipChanger with the stationary welding gun.
Technical specifications
  • Change on different shafts
  • Compact design
  • Can be carried on the gripper
  • quick-change magazine
  • Minimum space requirement
Concept
  • FFTweldtecMobile TipChanger enables time-optimized and automatic changing of the electrode caps on stationary welding guns
  • combines compact design with low weight for mounting on the robot gripper
  • The electrode caps are changed one after the other by aligning the mobile TipChanger with the stationary welding gun.
Technical specifications
  • Change on different shafts
  • Compact design
  • Can be carried on the gripper
  • quick-change magazine
  • Minimum space requirement

Advantages of the FFTweldtec Mobile TipChanger Seamless integration into your production process.

Increased efficiency

  • Increased availability and productivity through time-optimized changeover

Flexible cap change process

  • Various shanks and caps possible
  • Minimal space requirement on the gripper
  • Simple programming
  • Filling of the magazine via quick-change cap bars

Cost savings

  • Cost savings due to less wear on the electric shafts.

Robust and easy to maintain

  • Use of proven components for high reliability and easy spare parts procurement.
  • Low maintenance requirements to minimize downtimes.

Options for the FFTweldtec Mobile TipChanger

Standardized collection container
  • The FFT collection container is used for the targeted disposal of used electrode caps in production systems in the automotive industry.
  • The electrode caps are emptied from the collection container via the disposal flap (manually operated).
  • The caps are directed into a transport container via the chute.
High force version
  • The FFT M-EKW-HK enables the smooth and automatic replacement of used electrode caps for resistance spot welding on stationary guns.
  • The FFTweldtecMobile TipChanger removes the electrode caps via a wedge separator that moves linearly between the electrode cap and the starting collar of the electrode shaft.
  • The electrodes are pressed onto the welding gun for resistance spot welding using high-force technology.
Robot docking
  • Direct connection of an FFTweldtecMobile TipChanger to any robot
  • Can be used universally, whether with or without the high-force option of the mobile electrode cap changer
  • Standardized design guarantees fast delivery times and optimized interfaces
  • Individual customer requirements can be taken into account.

FFTweldtec Mobile TipChanger Technical specifications

FFTweldtec Mobile TipChanger

FFTweldtec Mobile Tipchanger

Length x height x width

705mm x 285 mm x185 mm

Ambient temperature

The ambient temperature should be between -5 - 50°C.

Magazine capacity

10

The magazine has 10 caps per page.

FFTweldtec Mobile Tipchanger Mockup

FFTweldtec Mobile TipChanger Complete technical specifications.
