FFTweldtec Projection Welding Machine Universal welding add-ons for your production.

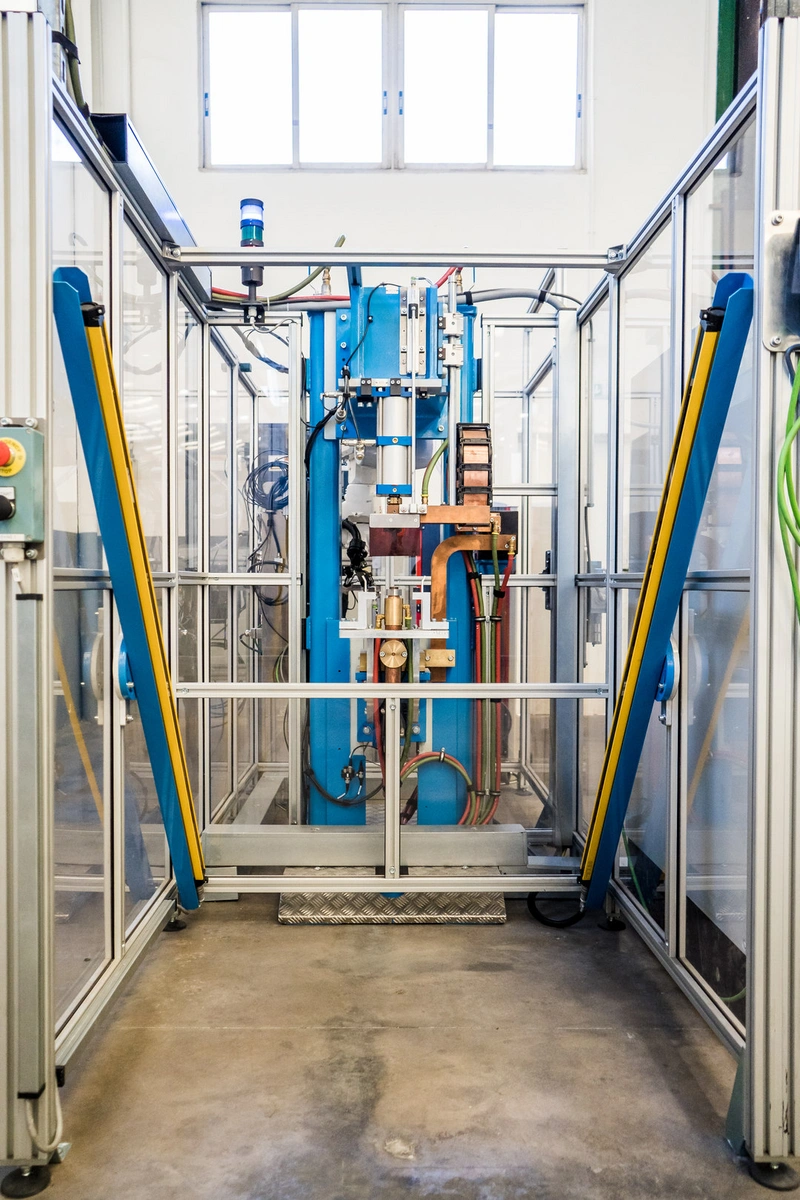

FFTweldtec Projection Welding Machine Inline

FFTweldtec PWM inline
Request PWM Inline

Request - weldtec

Contact details

* Mandatory field

Please wait
Receive information material
Concept
  • automatic welding of different types of components (nuts, bolts, plates,...)
  • no manual intervention
  • Correct positioning of the component is guaranteed
  • installation within a production line and control via PLC line
Technical specifications
  • The cycle time for welding is between 6-7 seconds per welded part.
  • Easy to change over
  • Quick change of electrodes (also for maintenance)
  • Easy to relocate

FFTweldtec Projection Welding Machine Offline

FFTweldtec PWM Offline
Request PWM Offline
Receive information material
Concept
  • manual welding of different types of components (nuts, bolts, plates,...)
  • Installation outside a production line
  • has its own PLC and a mobile HMI to control the machine
  • Can be equipped with servomotors and accumulators for automatic operation of the machine
  • Fully automatic and semi-automatic machines
Technical specifications
  • The welding cycle time is between 6-7 seconds per welded part
  • Easy to change over
  • quick change of electrodes (also for maintenance)
  • easy to relocate
Concept
  • automatic welding of different types of components (nuts, bolts, plates,...)
  • no manual intervention
  • Correct positioning of the component is guaranteed
  • installation within a production line and control via PLC line
Technical specifications
  • The cycle time for welding is between 6-7 seconds per welded part.
  • Easy to change over
  • Quick change of electrodes (also for maintenance)
  • Easy to relocate
Concept
  • manual welding of different types of components (nuts, bolts, plates,...)
  • Installation outside a production line
  • has its own PLC and a mobile HMI to control the machine
  • Can be equipped with servomotors and accumulators for automatic operation of the machine
  • Fully automatic and semi-automatic machines
Technical specifications
  • The welding cycle time is between 6-7 seconds per welded part
  • Easy to change over
  • quick change of electrodes (also for maintenance)
  • easy to relocate

Advantages of the FFTweldtec PWM Seamless integration into your production process.

Customized production

  • Design and components are adapted to customer requirements

Quality

  • Intelligent electrode ensures
    • optimum positioning
    • high welding quality
    • Poka-Yoke
Störungsfrei Icon

Quick & easy conversion

  • Quick and easy conversion to other products
  • Easy access and quick changeover for maintenance
  • Simple relocation of the machine in the factory (forklift shoes)

Flexible

  • The machine can work with different welding force programs

Quality control system for welding work Smart Electrode

The SMART ELETRODE developed by FFT, which is equipped with a coding system, enables control measurements.

  • The intelligent electrodes contain position sensors (micrometer accuracy).
  • The sensors measure the current position of the lower and upper electrodes.
  • These measures ensure control of the welding quality and define the conditions for the OK and NOK parts.
  • Electrodes and pins are designed for quick and easy replacement during maintenance.
  • Sensors of the Balluff IO-Link BTL series
  • Ceramic manufactured by Doceram Cerazur (blue ceramic)

Variants of the FFTweldtec PWM Technical specifications

FFTweldtec Projection Welding Machine Inline

FFTweldtec Welding Maschine

Length x height x width

1200 mm x2200 mm x 1000 mm

Weight

850 - 1200 kg

Compressed air

6 bar

The compressed air should be 6 bar.

Water consumption

The water consumption is approx. 22 l/min

Nominal voltage

Volt

400 V

FFTweldtec Projection Welding Machine Offline

FFTweldtec PWM Offline

Length x Height x Width

1200 mm x 2000 mm x 1000 mm

Weight

850 - 1200 kg

Compressed air

6 bar

The compressed air should be 6 bar.

Water consumption

The water consumption is approx. 22 l/min

Nominal voltage

Volt

400 V

FFTweldtec Welding Maschine Mockup

FFTweldtec Projection Welding Machine Complete technical specifications.
