Advantages of the FFTmetrology RGS Seamless integration into your production process.
The right shape for every application
Connection diversity
Evaluation
FFTmetrology RGS process-oriented Hardware options

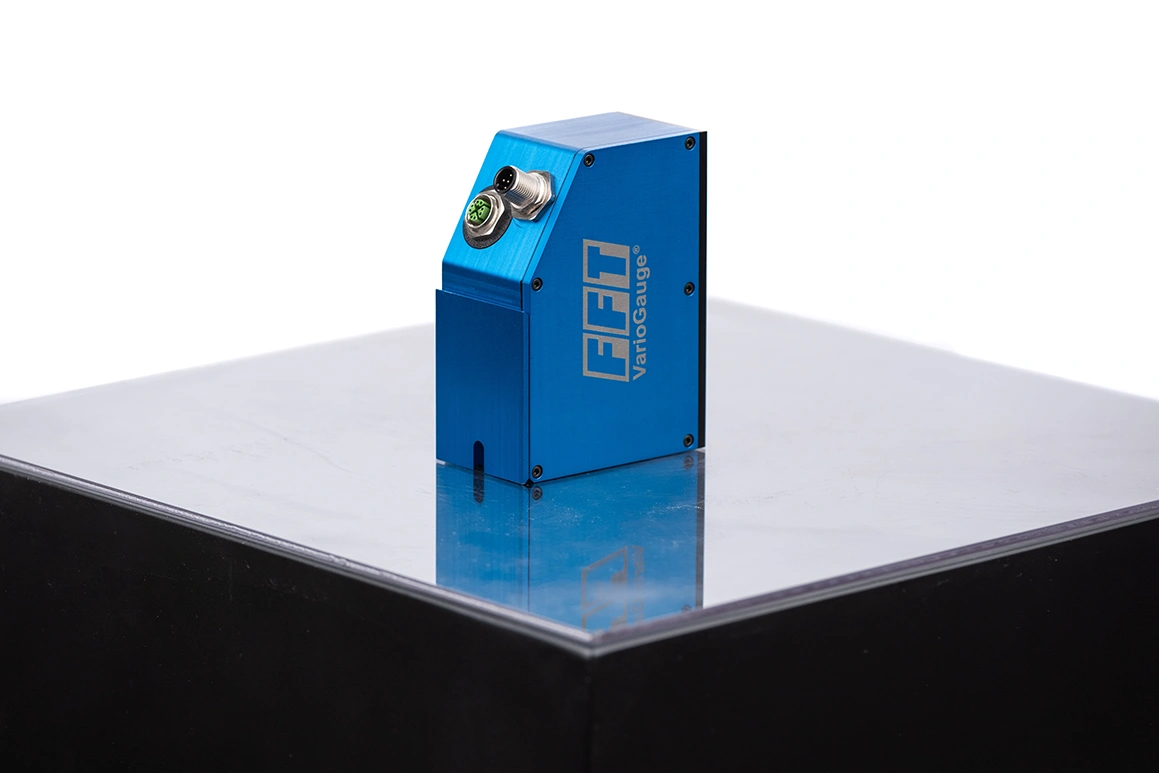

FFT VarioGauge V7 2.5D (triangulation sensor)

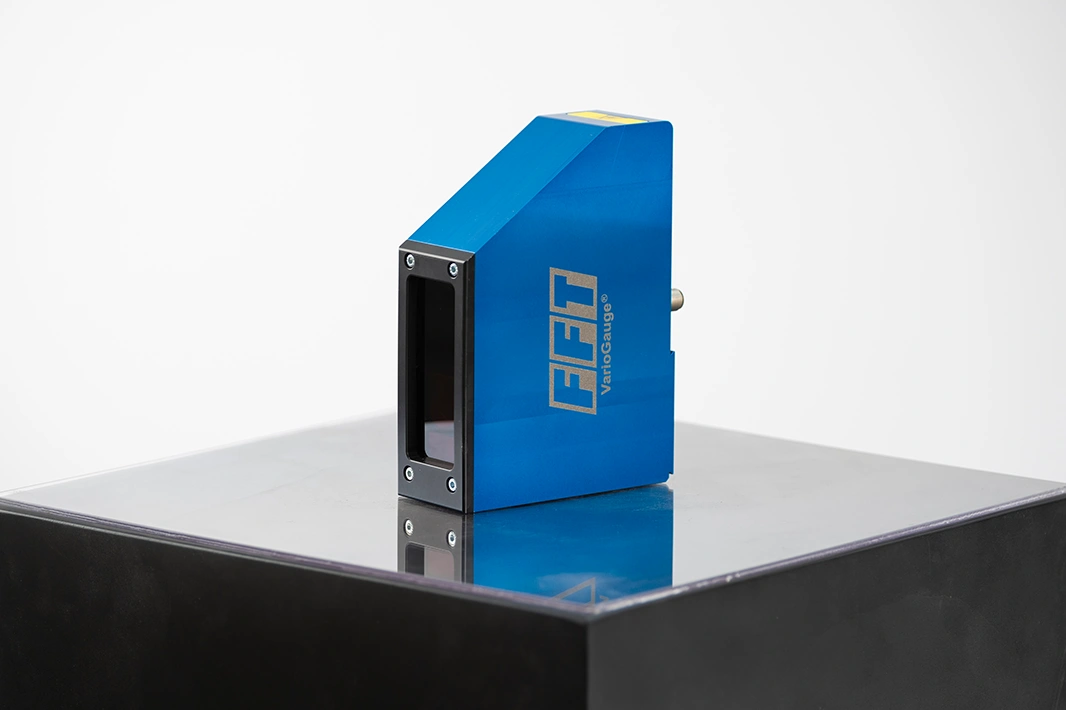

FFT VarioGauge V6 2.5D (triangulation sensor)

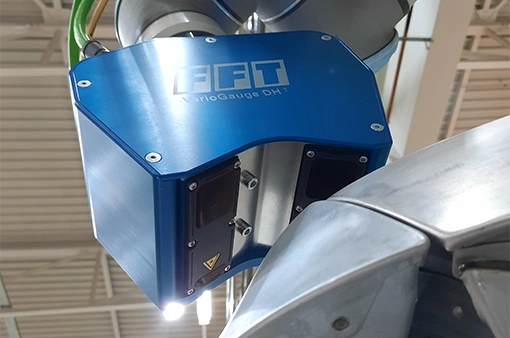

FFT VarioGauge DH (double head sensor)

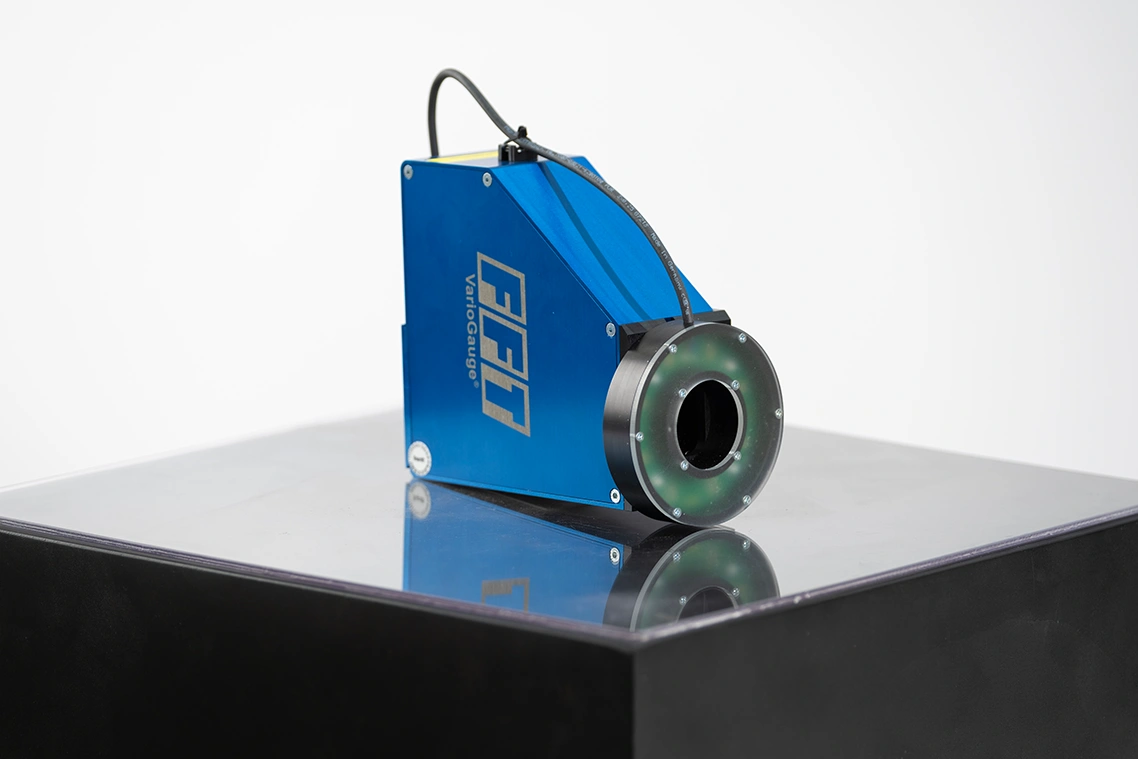

FFT VarioGauge V6 2D (area sensor)
FFT VarioGauge - Stroke
System features of the FFTmetrology RGS Recognition of various features
Holes
The VisionView recognizes a wide variety of holes. It calculates the shape, size, depth and much more.
Studs
The measuring system also recognizes the different studs in their length, width or shape.
Surfaces
Surfaces such as edges and gaps are also measured here. Our measuring system calculates the gap width or the angle of the edge.
Alignment
The system also calculates the orientation of the various shapes.
Image processing and sensor technology that inspires. We look forward to getting in touch with you:
Send us your concept idea, your automation request or a description of your process for image processing or sensor technology that we can support you with. We look forward to presenting our standardized portfolio to you, but also to developing new solutions together with you.
Your FFTmetrology contact:
